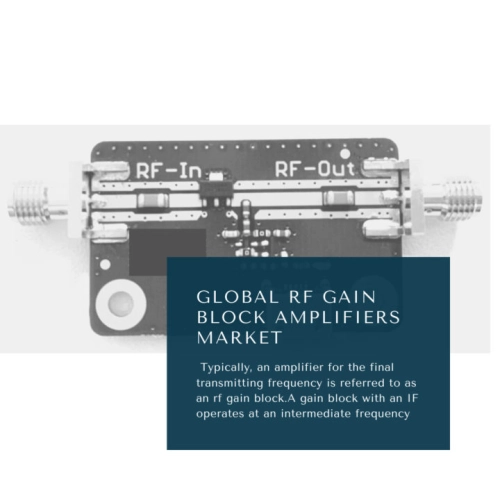

Typically, an amplifier for the final transmitting frequency is referred to as an rf gain block.A gain block with an IF operates at an intermediate frequency.
These amplifiers are primarily used within the receiver circuit at the front-end of the antenna, where the requirement for low noise amplifiers is not present.RF Gain block amplifiers are similar to broadband Amplifiers, with just a few exceptions.
Power amplifiers are regarded as the “workhorse” amplifiers in RF front-end transmitters because they transform low-power signals from communications and radar equipment into high-powered transmissions that are transmitted through an antenna.
The Global RF gain block amplifiers market accounted for $XX Billion in 2023 and is anticipated to reach $XX Billion by 2030, registering a CAGR of XX% from 2024 to 2030.
The GRF3012 and GRF3016, two new ultra-wideband gain blocks aimed for broadband applications like instrumentation, microwave backhaul, and general-purpose RF and microwave amplification, are now available in production, according to Guerrilla RF. The GRF3012 and GRF3016 are a logical next step in the development of our expanding line of broadband components.
They were able to develop two new devices that offer the perfect fusion of flat gain, linearity, compression, and noise performance after defining specific performance needs in the instrumentation sector. Each device has a frequency range that runs from close to DC to up to 12GHz, and its total coverage spans the HF, VHF, UHF, L, S, C, and X bands.
CMX90G701 and CMX90G702 – CML Microcircuits sells the CMX90G701 and CMX90G702 Positive Gain Slope Amplifiers. Utilizing the cutting-edge SRF MMIC design capability of the company, these general-purpose gain blocks are ideal for a wide range of wireless applications in the 6-18 GHz frequency range, such as microwave backhaul, satellite communications, radar, 5G fixed wireless access, and VSAT.
They can also be used to get rid of passive equalizers because they compensate for system losses across their working frequency range. The GaAs pHEMT process technology is used to build the devices, which aim for the best possible balance of low DC power consumption, low noise, and high linearity.
Applications requiring a higher gain-slope compensation can take advantage of the CMX90G702’s +2dB gain-slope and the CMX90G701’s +1dB positive gain-slope.
Gain blocks are designed for simplicity of use, have a high level of integration, reduce the number of external components, and have reduced PCB footprints, just like other S-RF family devices. They have a low noise figure of 3dB, a P1dB output rating of +10dBm, and a small signal range of 9.5-11.5dB.
The devices operate over a broad supply voltage range of 2V to 5V with a typical current of 22mA thanks to an on-board active bias circuit. This eliminates the need for passive equalization circuits in the system design.
The devices are cascadable “plug-in” blocks. Additionally, each device’s RF ports are intrinsically matched to a 50-Ohm impedance, making it easier to develop products in a short amount of time, especially for applications that are intended for the general public.
The CMX90G701 and CMX90G702 Low Power Gain Blocks continue our previous offering of positive gain-slope amplifiers aimed at the sub-7GHz market by expanding the RF spectrum to 6-18GHz. CML’s cutting-edge SRF design capabilities are utilized in the creation of these products, which add to our collection of positive gain-slope amplifiers.
These products satisfy the growing market demand for high-performing mmWave products used in microwave backhaul, radar, and satellite communications, among other fields.The low-power amplifier lineup now includes the CMX90G701 and CMX90G702, complementing the CMX90G301 and CMX90G302 models.
A variety of PAs, LNAs, Gain Blocks, and FEMs will be among the high-performance GaAs and GaN technologies used in upcoming SRF family products.
